by Christopher E. Strangio, CAMI Research Inc.
Strong demand for contract manufacturing coupled with a shortage of skilled labor places new stress on companies trying to maintain product quality and grow their businesses. Training unskilled workers for specific assembly and test jobs takes time, and may prove unsatisfactory if quality cannot be maintained. Further, with the added requirements of ISO 9000 certification, faults in procedure or documentation could create problems for the company's customers and its reputation. PC-based test automation addresses many of these problems, particularly for contract cable assembly shops and OEMs. We review the approach CAMI Research Inc. has taken with the CableEye® tester to automate test, fault isolation, labeling, and documentation to ensure test consistency and reduce susceptibility to human error.
Manufacturing errors are inevitable. Through quality control, we seek to keep those errors to an absolute minimum. Achieving this depends largely on reducing human error in assembly and test. Our PC-based approach to cable testing advances the technology by:
1 maintaining a secure, accurate cable database,
2 displaying cable wiring and errors graphically,
3 automating control of the test process, and
4 providing high-quality documentation.
The balance of this article shows exactly how these capabilities help the operator avoid errors and improve throughput. It is important to note that the attributes of our tester result from the PC's high-resolution color graphic display, hard disk mass storage, programmability, and graphics printer drivers. Lacking a PC, these attributes would not be possible.
Benefits of a Computerized Database
Reliable testing depends absolutely on accurate comparison data ("golden" cable data). Given accurate data, we must also ensure that the operator loads this data into the tester flawlessly. Uncertainty on either of these requirements can only reduce our confidence in the test results. A computerized database offers many advantages in these regards:
1 The cable data you store will never change and can be managed by one responsible quality control engineer. You may then distribute it by the company's network to remote PC-based test stations.
2 Data backup, a critical element of any system wide quality program, is easy and fast, and can even be made automatic.
3 You may easily exchange cable data with your customers, or with an overseas factory, using modems or e-mail. By entering cable specifications in computer-readable form at the beginning, you are simultaneously creating model data for the tester, and eliminating any chance for keystroke or transcription errors. This same data may then be used to generate schematics and documentation automatically, eliminating another potential source of error.
4 You may save cables under their true part number. You no longer need a "signature" or other arcane numbering scheme with which to code cables. Using a cable's part number to identify it in the database is more meaningful, and reduces the chance of operator error in loading data, recording results, or making labels.
5 The database holds much more information than just cable wiring. With each record, our CableEye system stores the wire list and schematic, connector types, label text, and descriptive notes. The text you enter may be of arbitrary length and include vendor information, customer data, assembly or setup instructions, cost, related part numbers, color codes, and operator name.
Displaying Information Graphically
People more readily understand images than numbers. We take advantage of that fact by showing cable wiring graphically, and depicting cable faults with pictorial images rather than just as numbers alone. Figure 1 shows the wiring of a typical cable containing jumpers and crossovers.

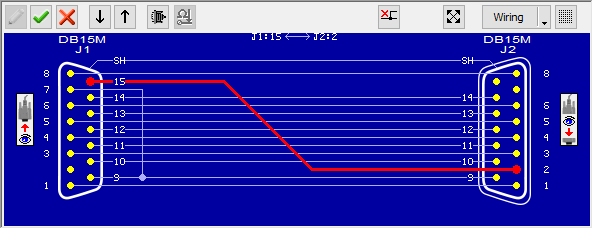

Figure 1: Computer-generated wiring schematic with crossovers and jumpers.
Software automatically computes the wiring schematic after a cable is measured. In this actual screen shot, the operator has highlighted one connection (in red) for review. In Figure 2, you see the graphic display that results from a single missing connection (the shield).

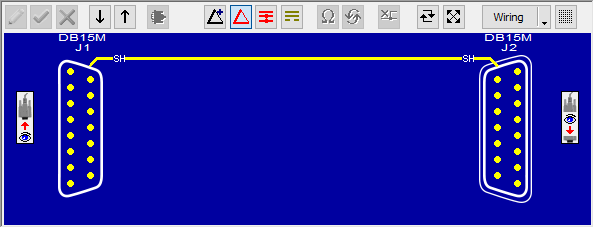

Figure 2: Graphic display of wiring errors showing, in this case, a missing shield.
A numeric wire list appears on all printed documentation in addition to the graphic display, and can be shown on the screen with a single keystroke. The small icon near each connector shows the direction of view into the connector. Change the direction of view into either connector with a single keystroke for the most informative orientation. The operator may choose to display the wiring if a fault is detected, or rely only on LED lamps to reveal a PASS/FAIL condition.
Automating the Test Process
Test consistency plays a large role in determining reliability. By completely automating the test process after the operator attaches a cable, we eliminate any chance that testing or documentation will differ from one cable to the next. We accomplish this with "Macros," which are small programs assembled by the test engineer using English-language instructions. A Macro can be as short as three instructions, although we show a more typical one in Figure 3. Macros pause when they reach the instruction WAIT FOR PB to let the operator mount the next cable to be tested. When ready, a pushbutton on the tester, or a footswitch, is pressed to continue.

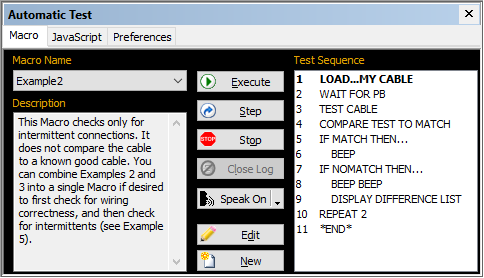

Figure 3: A simple Macro that performs a loop test on a learned cable.
Figure 4 shows a Macro that prints labels for correct cable assemblies, logs test results to disk, and prints an error report (the "difference list") should any problems be found.

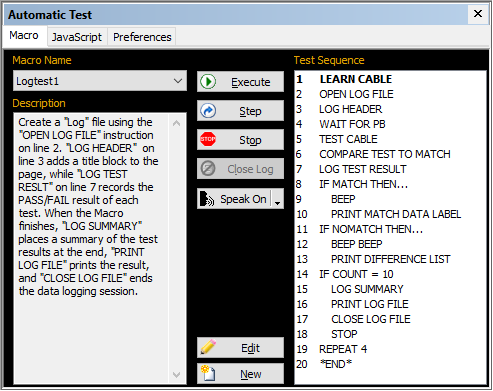

Figure 4: This Macro logs each test result to disk and prints a label.
If errors are found, it prints an error report.
The first line of this Macro brings up an entry screen that allows the operator to enter the name of the assembly to be tested. Alternatively, you may use a bar code reader in place of the computer's keyboard to enter this information. If desired, you may embed the count value produced by the Macro within notes or label text to create serialized labels and documentation.
Reports and Labels
Documentation generated at test time certifies that an assembly has been tested and describes the result. You may produce a test sheet for each assembly, or a single report at the end of a batch summarizing the result. Figure 5 shows the item report, while Figure 6 gives the batch report. Your company's name may optionally be printed under the title block for reference by your customers.

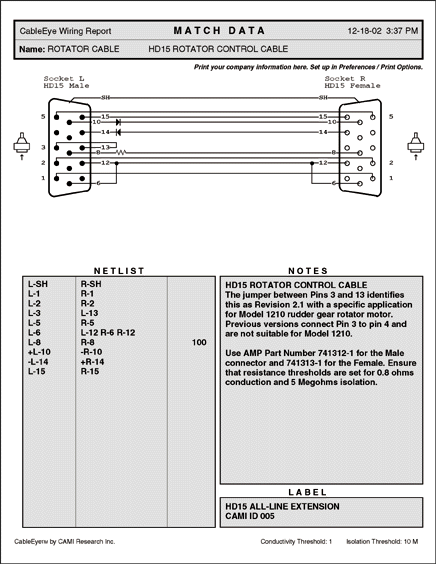

Figure 5: Test documentation that you may print on a laser printer or an inexpensive inkjet printer.

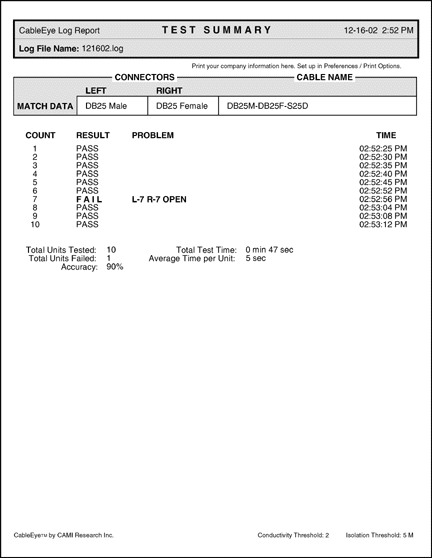

Figure 6: A batch report, showing the result for each cable, prints at the end of the test process.
Our experience shows that test technicians who have not previously worked with PCs experience a fairly short learning curve in adapting to this equipment. We rely on predictable, stable, menu-driven software with easy-to-understand messages, and an on-screen help system with page references to the User's Guide. Within a week, most technicians are comfortable with CableEye, productive, and have no wish to look back at their old benchtop testers.
PC-based test equipment relies on mass-produced, interchangeable, inexpensive computer hardware for all but the data acquisition task. As a result, your cost to set up a PC-based test station becomes extremely attractive, particularly with new basic PCs now in the sub-$1000 range. Pricing for a 128-point CableEye tester with software and CB15 CB board set is $1295. With a typical graphics-capable inkjet printer at $200, the complete station cost, including a new PC, is under $2500. Expand the system to over 2560 test points at $495 per 128-point module. When weighed against the saved technician time resulting from graphic wiring display during rework, and the added benefits of a secure cable database, test consistency, and full-schematic documentation, payback will be on the order of months for a busy cable shop.
