The M4 CableEye System
for Continuity, Resistance, Capacitance, and Twist Pairing Test and Measurement

128 Test Points (Expandable to 2560 Test Points) + 24 Accessory Test Points
miniDIN8 Socket for Remote Control, DB9 Socket for Probe/Minihooks, 24-pin Header for Expander Cable

Declaration by Manufacturer CAMI Research Inc.

CableEye Models M3Z and M4 look identical on the outside. Internally, M4, shown below, uses a different circuit board that enables it to measure capacitance and, through that, to report twist pairing, length to break etc.

This item comprises a 128-point control module with probe port and electronics permitting it to test cables with a maximum of 64 conductors. The price includes a board set, probe, operating software, power module, USB cable, Getting Started Guide, Software Introduction Booklet, User's Manual (PDF), and two-year Product Support Subscription. Ships calibrated with a Certificate of Calibration. The default board set is the CB-T2. A computer is required and not included. USB interface. Ready to use.

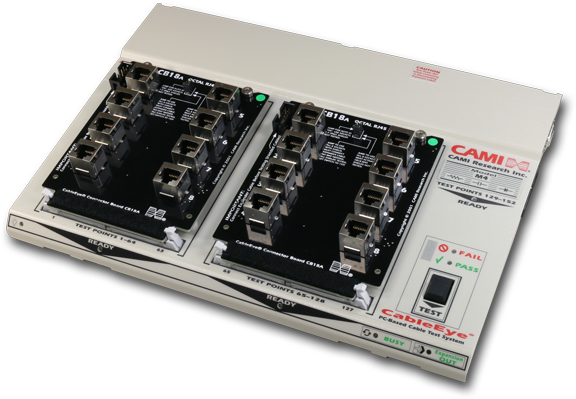

The first photo shows catalog Item 824, the CableEye M4 system with the CB18A board set attached. Remove the interchangeable CB boards by pressing apart the latches near the front of the board. Choose from over 60 different CB boards to accommodate over 200 standard connector types, and use the CB8 universal board for prototyping and for accomodating unlimited connector types. Like the M3Z system, the M4 control module offers a small bench footprint and the ability to handle cables and harnesses of up to 64 conductors plus accessories such as a footswitch, probe, or minihooks. For larger cables or harnesses, attach an expansion module to M4, Item 825 (vertically stacked). USB interface standard.




CableEye Software Reports Twist Pairing and Wire Resistance Results
