The M3Z CableEye Test System
for Continuity and Resistance Test and Measurement

128 Test Points (Expandable to 2560 Test Points) + 24 Accessory Test Points
miniDIN8 Socket for Remote Control, DB9 Socket for Probe/Minihooks, 24-pin Header for Expander Cable
Measures Resistance between 0.1 Ω and 5 MΩ
Expandable to 2560 Test Points
For Diagnostic and Pass/Fail Testing
Tests for continuity (opens, short, miswires, intermittence) and resistance limits
Measures resistors, diodes, and complex networks

The M3Z differs from the M2Z in that the M3Z a) employs a different electronic design, b) is expandable to 2560 test points, c) allows resistance measurement to be made, so you can check the quality of your connections as well as the value of embedded resistors, and d) allows measurement of diodes, complex networks, and backplane applications.

This item comprises a 128-point control module with probe port and electronics permitting it to test cables with a maximum of 64 conductors. The price includes a board set, probe, operating software, power module, USB cable, Getting Started Guide, Software Introduction Booklet, User's Manual (PDF), and two-year Product Support Subscription. Ships calibrated with a Certificate of Calibration. The default board set is the CB-T2. A computer is required and not included. USB interface. Ready to use.

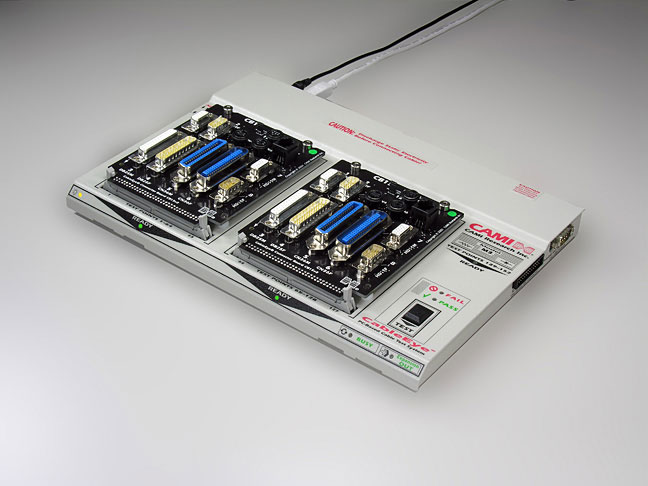

This photo shows catalog Item 826, the CableEye M3Z system with the CB15 board set attached. Remove the interchangeable CB boards by pressing apart the latches near the front of the board. Choose from over 60 different CB boards to accommodate over 200 standard connector types, and use the CB8 universal board for prototyping and for accomodating unlimited connector types. Like the M2Z the M3Z control module offers a small bench footprint and the ability to handle cables and harnesses of up to 64 conductors plus accessories such as a footswitch, probe, or minihooks. For larger cables or harnesses, attach an expansion module to the bottom of the control module (Item 827) and vertically stack more until you achieve your desired test point capacity to a maximum of 2560 test points. See below for rear view and side view. USB interface standard.

---

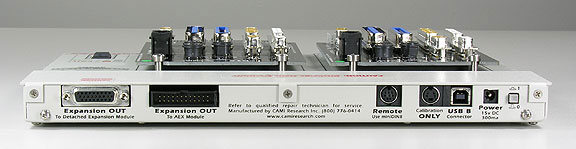

Rear View

---

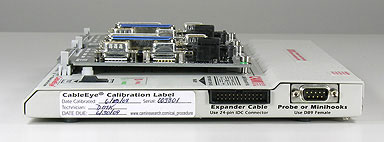

Side View
