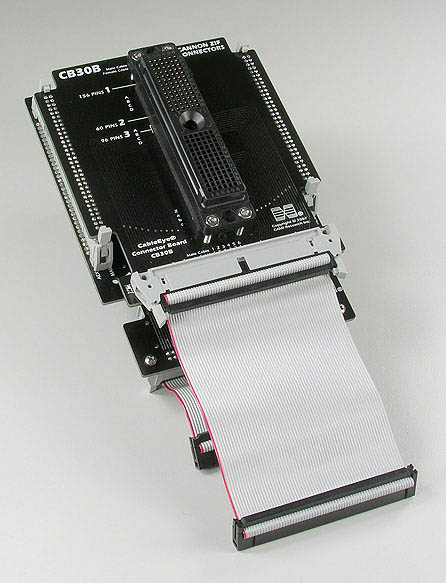

2 - CB30B Mounted on a CB30 Board.
The down-facing latch header on the CB30
connects to an expansion module.

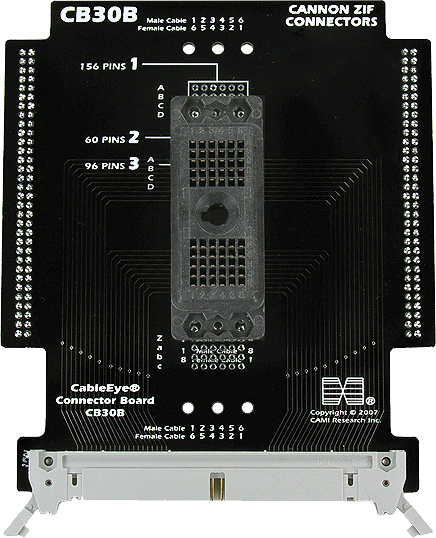

3 - Attachment of the CB30 board to an expansion module.
The PCB footprint accepts any of three connector sizes: 156 pins, 96 pins, or 60 pins. Only one connector of these three sizes may be mounted on the board. Because of the complex and dense nature of these connectors, we do not advise customer-installation unless proper wave soldering equipment is available. Note that these mating connectors are expensive and may require some lead time to obtain.
ITT Cannon Connector Part Numbers:
156 pins, DL1-156RW6B, Catalog #110536-1007
96 pins, DL2-96RW6B, Catalog #110855-0014
60 pins, DL3-60RW6B, Catalog #110901-0010
Important: These CB30B boards are daughter boards intended to mount on a set of CB30s (see Photo 2 below). Plan on ordering a set of CB30s with the CB30B if you do not already have a set.
Set of two boards with four 64-pin latch headers. Requires 384 test points and a set of CB30 boards (Item 760). Note that the latch headers supplied with the CB30B should be mounted to the CB30 boards to accommodate the 64-pin sockets on the bottom of the CB30B; CAMI Research will configure this for you if the CB30s are ordered at the same time as the CB30B.
Connectors Not Included: Solder Service1 available.
2 Expansion Module Required: Two (2). Not Compatible with M2Z or M2U-Basic.
2E Set of two boards with expander cable.
1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.
Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
