CB30C Connector Board

LFH-160 Connectors
Shown Actual Size
NOTE: 384 Test Points Required!

CB30D, E, F, G Connector Boards

LFH-200, TE MICTOR Full Range, Joy Signal Compact Brute CB-140, Cannon ZIF DL5-260 Connectors

Configuration - CB30C

For 160-pin Molex LFH™ (low-force helix) connectors. Because of the complex and dense nature of these connectors, we do not advise customer-installation unless proper wave soldering equipment is available. Note that these mating connectors are expensive and may require some lead time to obtain.

Molex Connector Part Number (two required): 71624-1003
Mating connector is Male for Female Cable Connector

Important: These CB30C boards are daughter boards intended to mount on a set of CB30s (see Photo 2 below). Plan on ordering a set of CB30s with the CB30CB if you do not already have a set.

Set of two boards with four 64-pin latch headers. Requires 384 test points and a set of CB30 boards. Note that the latch headers supplied with the CB30C should be mounted to the CB30 boards to accommodate the 64-pin sockets on the bottom of the CB30C; CAMI Research will configure this for you if the CB30s are ordered at the same time as the CB30C.

Connectors Not Included: Solder Service1 available.

2 Expansion Module Required: Two (2). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.



Configuration - CB30D, E, F, G

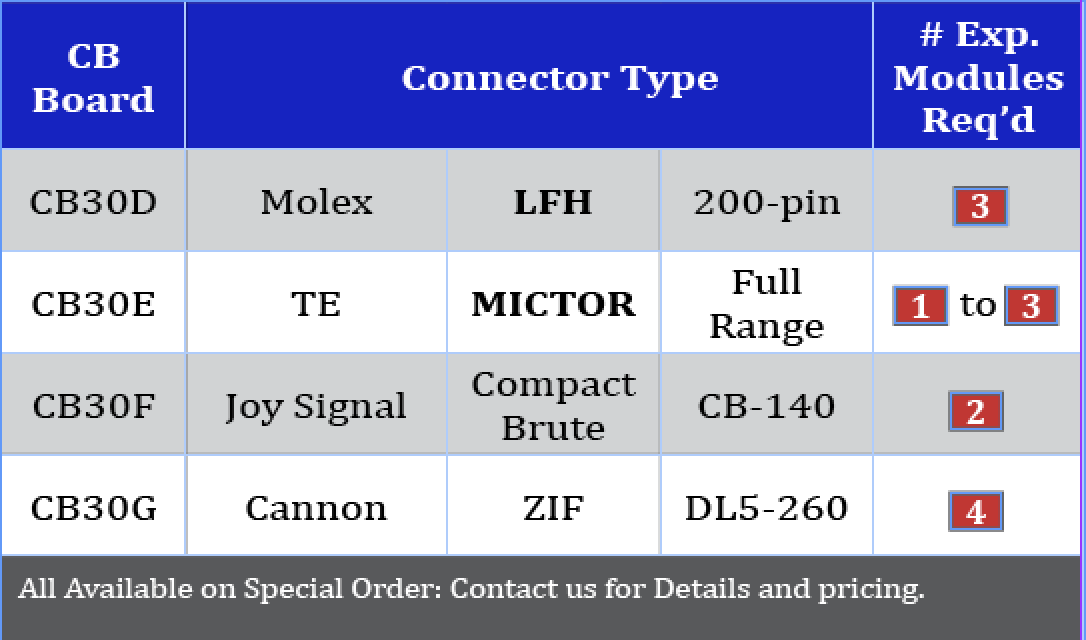

TABLE: CB30D through G (Refer to Key Below)



Important: These are daughter boards intended to mount on a set of CB30s (see Photo 2 below). Plan on ordering a set of CB30s with the CB30D, E, F, G if you do not already have a set.

Connectors Not Included: Solder Service1 available.

X Expansion Module Required: See Table for X Value. Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Software

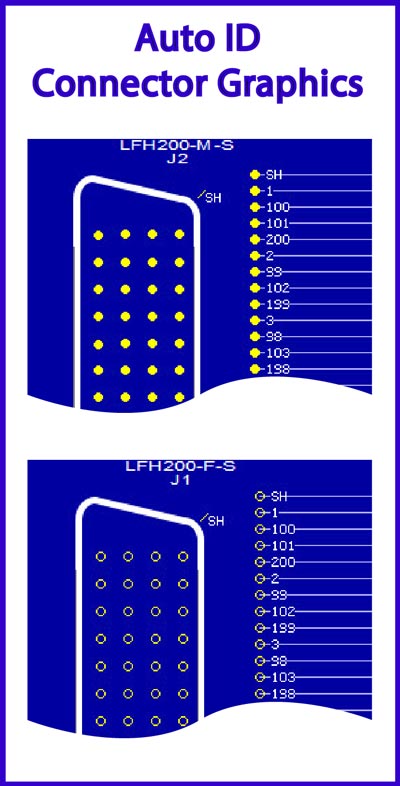

IDTo enable Auto ID the following software releases are required:

CB30D , V6.1 or later
CB30E, Build 1245 or later
CB30F , V6.1 or later
CB30G, Build 1780 or later

Voltage Rating - CB30C, D, E, F, G

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

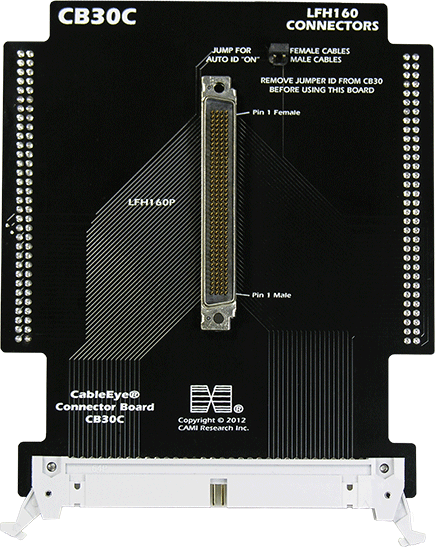

CB30C Board with a 160-pin LFH Connector Soldered in Place (Connectors Not Included)


CB30D Board with a 200-pin LFH Connector Soldered in Place (Connectors Not Included)

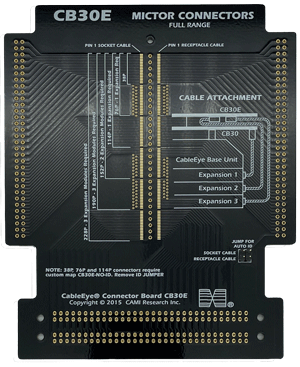

CB30E Board for TE Mictor Connectors Full-Range (Connectors Not Included)

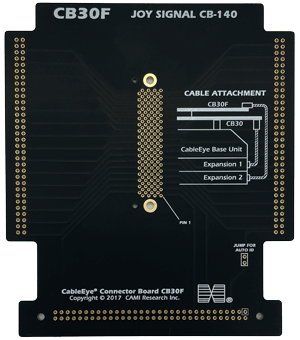

CB30F Board for Joy Signal Compact Brute CB-140 Connector(Connectors Not Included)


CB30G Board with a DLF-260 Connector Soldered in Place (Connectors Not Included)

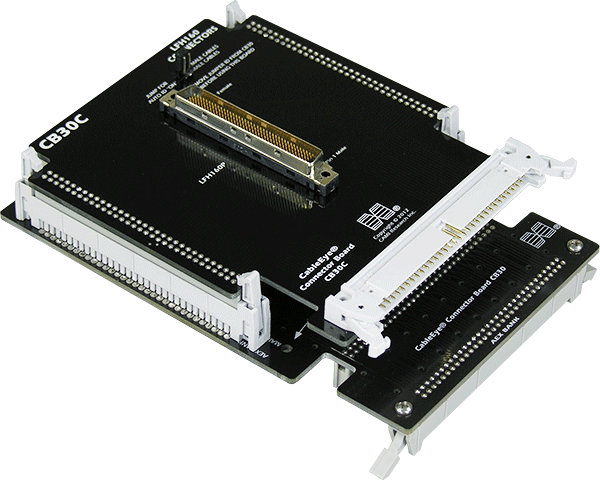

2 - CB30C Mounted on a CB30 Board.
The down-facing latch header on the CB30
connects to an expansion module.
3 - Attachment of the CB30 board to an expansion module.

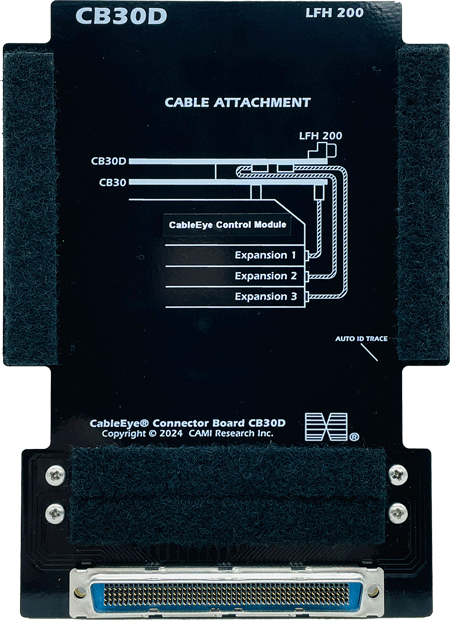

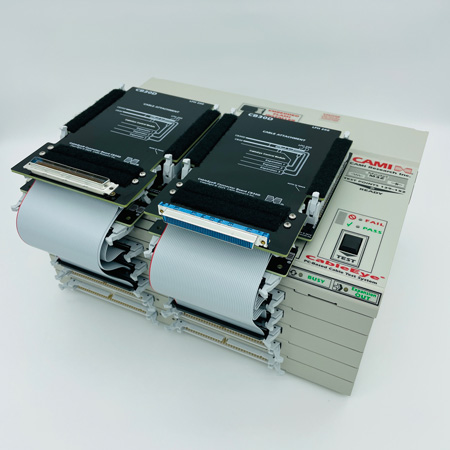

4 - Attachment of the CB30D board

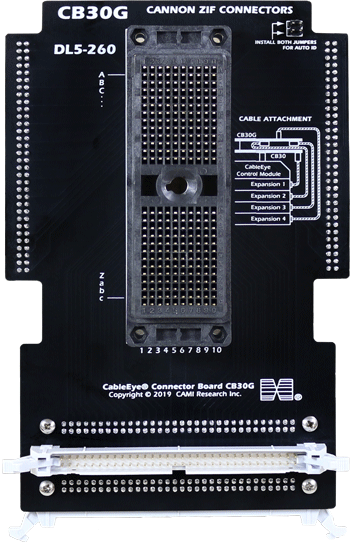

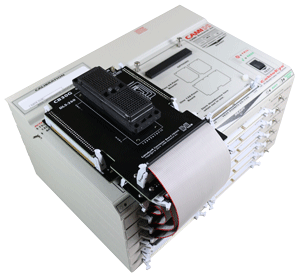

5 - Attachment of the CB30G board
