M2Z
Checks continuity, tests for opens, shorts miswires and intermittence. No resistance measurement. Limited to 128 test points. Includes probe.
Checks continuity, tests for opens, shorts miswires and intermittence. No resistance measurement. Limited to 128 test points. Includes probe.

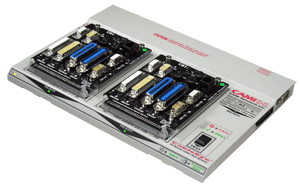

M3Z
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 5 MΩ. 128 test points plus 24 accessory test points, expandable to 2560 (+24) test points by adding expansion modules. Includes probe.
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 5 MΩ. 128 test points plus 24 accessory test points, expandable to 2560 (+24) test points by adding expansion modules. Includes probe.

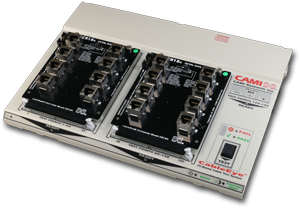

M4
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.02 Ω and isolation up to 6 MΩ. Checks for capacitance, Twisted Pair Relationship and Wire Length. 128 test points plus 24 accessory test points, expandable to 2560 (+24) test points by adding expansion modules. Includes probe.
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.02 Ω and isolation up to 6 MΩ. Checks for capacitance, Twisted Pair Relationship and Wire Length. 128 test points plus 24 accessory test points, expandable to 2560 (+24) test points by adding expansion modules. Includes probe.

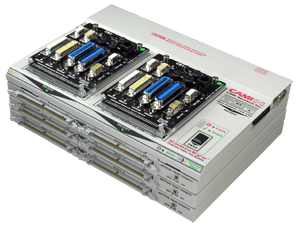

Low Voltage System Expansion Modules
Add test points to M3Z and M4 control modules with expansion modules. Each expansion module stacks under the control module and provides an additional 128 test points. An expansion module can be switched off when not in use. Adding expansion modules to M3 or M4 systems requires recalibration.
Add test points to M3Z and M4 control modules with expansion modules. Each expansion module stacks under the control module and provides an additional 128 test points. An expansion module can be switched off when not in use. Adding expansion modules to M3 or M4 systems requires recalibration.

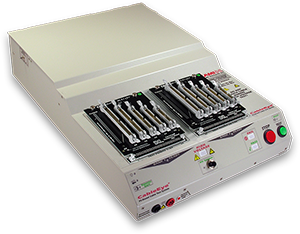

HVX
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 1 GΩ. Checks for insulation resistance and dielectric breakdown up to 1500Vdc or 1000Vac. External terminals available for high voltage testing on transformers and other electrical components. 128 test points plus 24 accessory test points for LV tests, 128 test points for HV tests. Expandable to 1024 (+24) test points. Includes probe.
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 1 GΩ. Checks for insulation resistance and dielectric breakdown up to 1500Vdc or 1000Vac. External terminals available for high voltage testing on transformers and other electrical components. 128 test points plus 24 accessory test points for LV tests, 128 test points for HV tests. Expandable to 1024 (+24) test points. Includes probe.
HVX-21
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 5 GΩ. Checks for insulation resistance and dielectric breakdown up to 2100Vdc or 1200Vac. External terminals available for high voltage testing on transformers and other electrical components. 128 test points plus 24 accessory test points for LV tests, 128 test points for HV tests. Expandable to 1024 (+24) test points. Includes probe.
Checks continuity, tests for opens, shorts miswires and intermittence, checks wire resistance down to 0.1 Ω and isolation up to 5 GΩ. Checks for insulation resistance and dielectric breakdown up to 2100Vdc or 1200Vac. External terminals available for high voltage testing on transformers and other electrical components. 128 test points plus 24 accessory test points for LV tests, 128 test points for HV tests. Expandable to 1024 (+24) test points. Includes probe.

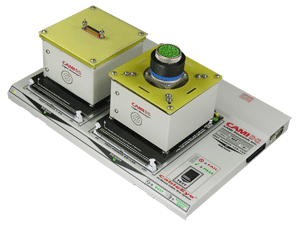

Light Director™ Connector Assembly System
Provides light-directed guided connector assembly. 1st-Sided Pinning and 2nd-Sided Pinning with electrical test. Increases productivity by up to 50% over manual assembly and reduces errors to near zero. (Not compatible with M2 series testers.)
Provides light-directed guided connector assembly. 1st-Sided Pinning and 2nd-Sided Pinning with electrical test. Increases productivity by up to 50% over manual assembly and reduces errors to near zero. (Not compatible with M2 series testers.)
