Expanded Harness Testers

Harness from industrial vehicle

Expanded Harness Testers

Expand M-Series Systems to 2560 Test Points
Expand HVX-Series Systems to 1024 Test Points


Low Voltage Expansion Module (AEX)

Item 827 (M3Z-AEX); Item 825 (M4-AEX)
M-Series System Max. 2560 Test Points

  • Permanently attaches underneath M-series control module (CM) or other AEX.
  • Same bench footprint as CM.
  • Adds 128 test points (TPs) per expansion module.
  • Adjust number of active TPs in software settings to optimize measurement speed.
  • Connect harness under test directly to tester's 64-pin header connectors via your adapters/panels.
  • Or use QuickMount™ fixtures to interface with our connector board test interface fixtures.
  • Add up to 19 AEX (+2,432 TPs) to your M3Z or M4 CM.
  • Buy with CM or retrofit.
  • Order at your convenience as your testing needs change.
  • Unit recalibration required when AEXs added or removed.
  • Declaration by Manufacturer CAMI Research Inc.

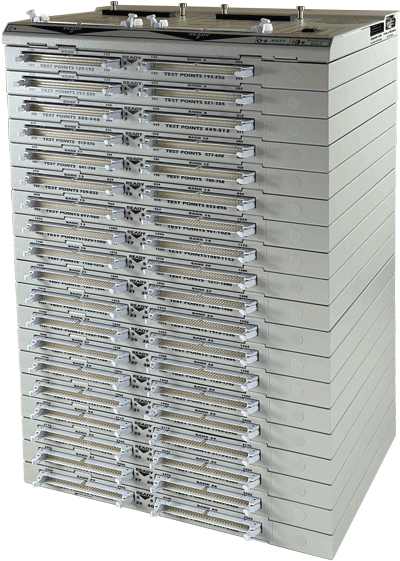

Harness tester comprising a Control Module with 19 attached expansion modules.

Harness Tester 2560 TPs:
LV Control Module Fully Expanded with Nineteen Expansion Modules

High Voltage Expansion Module (AEX)

Item 828 (HVX-AEX; Item, 828A (HVX21-AEX)
HVX-Series System Max. 1024 Test Points

Our HiPot testers expand too!

  • Permanently attaches underneath HVX-series control module (CM) or other AEX.
  • Same bench footprint as CM.
  • Adds 128 test points (TPs) per expansion module.
  • Adjust number of active TPs in software settings to optimize measurement speed.
  • Connect harness under test directly to tester's 64-pin header connectors via your adapters/panels.
  • Or use QuickMount™ fixtures to interface with our connector board test interface fixtures.
  • Add up to 7 AEX (+896 TPs) to your HVX or HVX-21 CM; The higher TP count systems are configured as two stacks.
  • Buy with CM or retrofit.
  • Order at your convenience as your testing needs change.
  • Unit recalibration required when AEXs added or removed.
  • Declaration by Manufacturer CAMI Research Inc.


HVX Expanded

Harness Tester:
Partially Expanded HV Control Module




Portability

Items 704C/D/G/H/K
704H is non-rolling

  • Pelican cases custom fit to your system.
  • CableEye ® software will operate from your Windows laptop.
  • SPECIAL OFFER: Buy HVX + Case, get 20% off 1st calibration service.
    Expires 13m after purchase.


Option to HVX




Applications

For testing large cables, wiring harnesses, and backplanes with applications in aerospace, defense, energy, medical, scientific R&D and more.



Harness tester comprising a Control Module with several attached expansion modules and test interface fixture.

M-Series Harness Tester With Test Interface Fixture
Application: Aerospace

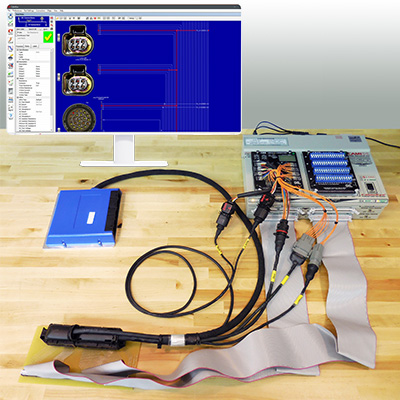

Harness tester comprising a Control Module with attached expansion modules and test interface fixture with motorport UUT attached.

M-Series Harness Tester With Test Interface Fixture and UUT
Application: Automotive/Motorsport
Photo Credit: EMH Motorsports, USA

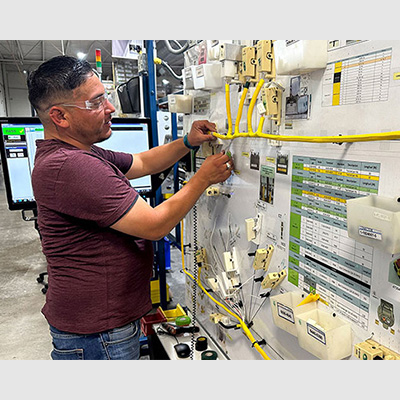

Harness tester being used to test large harness.

M-Series Harness Tester With Test Interface Fixture and UUT
Application: Industrial Manufacturing, Medical Device, Hybrid Vehicle, Clean Energy
Photo Credit: Altex Engineered Electronic Solutions, USA

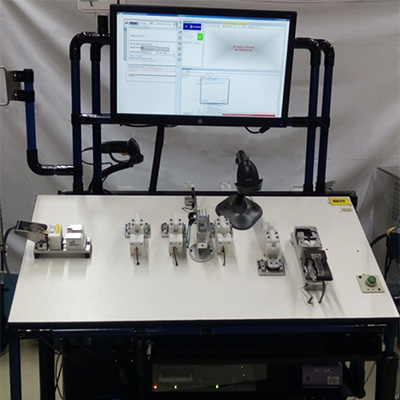

Harness tester and test interface panel with lock and release latches.

HVX-Series Harness Tester With Test Interface Fixture
Application: Automotive
Photo Credit: Furukawa American, MX
