CableEye ® HiPot Cable & Harness Test System, HVX-21
IndexAug 4, 2015
CAMI Research Inc. (Acton, MA) announces an addition to its CableEye® cable and harness testing system suite, specifically to the HV product line. The HVX-21 extends the HiPot test voltage range to 2100 Vdc and 1200 Vac permitting detection of even more subtle defects.

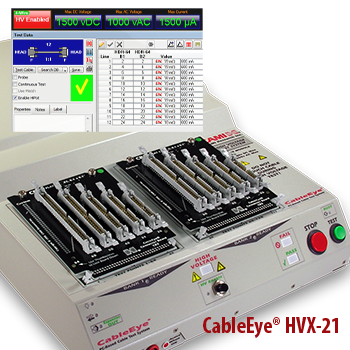

HVX-21
Introduced at the 2015 Wire Processing Technology Expo, the HVX-21 differs from the HVX in having 40% greater maximum DC, and 20% greater maximum AC test voltages. In addition, the current sensitivity is 5x higher allowing detection of the same insulation resistance at far lower voltages to minimize the risk of insulation or surface damage.
These extended range capabilities permit testing to meet many of the more stringent requirements of commercial and aerospace applications.
Industry Standards
Like the HVX, the HVX-21 easily handles all electrical testing requirements of the IPC/WHMA-A-620B guidelines, in addition to the most exacting reporting requirements of government-contracted and ISO 9000-style certified companies.
Optional Extras
- Expansion module (Item 828), +128TP/module attaches in a stacked configuration.
- 4-Wire Kelvin test feature (Item 832) for expanded testing of contact and wire resistance to as low as 1 mΩ. Helps reveal cold solder joints, faulty crimps, recessed pins, pin contact contamination, improper wire gauge, and stress-extruded wire.
- HV remote socket (Item 829X) for extending HV emergency stop, and HV-Enable function to an external, custom-designed panel used when mounting the system in an inaccessible cabinet.
The HVX-21 (Item 829A) is $7995 (Domestic US Price), and includes the standard one year Warranty which is combined with free tech support and free software upgrades.
Contact salesREMOVE@REMOVEcamiresearch.REMOVEcom or +1 (978) 266-2655 for a quote.
Note: Prices are USA only and subject to exchange rates, freight and import costs. Contact your local authorized distributor for local pricing.
CAMI Research produces expandable and upgradable diagnostic Cable & Harness Test Systems for assembly, prototyping, production, and QC of standard or custom cables. CableEye Testers display, and document electrical properties such as continuity, resistance, capacitance, dielectric breakdown, insulation resistance, miswires, and intermittent defects.
CableEye ® Automation-Ready Cable and Wire Harness Test Systems
CableEye testers are highly versatile, expandable and upgradable diagnostic and Pass/Fail check Cable and Harness Test Systems that are PC-based. They are used for assembly, prototyping, production, and QC of standard or custom wire cables and harnesses The entire suite of products is powered by the same easy-to-use operating software and, with the help of its signature easy-to-interpret color-coded graphics, instantly identifies not only when there is a fault, but what type of fault and where.
Low Voltage M2 Series
For diagnostic and Pass/Fail Testing - Find, display, log, & document continuity (opens, shorts, miswires, intermittent connections).
Low Voltage M3 Series
For all of the above plus resistance (contact, isolation, embedded), and diodes (orientation, forward voltage, reverse breakdown).
Low Voltage M4 Series
For all of the above plus precision resistance (4-wire), and capacitance (twist wire relationship, length of cable, length to break, capacitors).
Low Voltage and High Voltage HVX Series
For all as described for M3 plus HiPot (dielectric withstand voltage and insulation resistance). 4-Wire Kelvin Measurement and Advanced Measurement Options (capacitance, twist wire relationship, length of cable, length to break, capacitors) are available.
